Porsche Cayenne, Audi Q7, VW Touareg Front Subframe Bushings
Porsche Cayenne, Audi Q7, VW Touareg Front Subframe Bushings
Porsche Cayenne, Audi Q7, VW Touareg Front Subframe Bushings
Porsche Cayenne, Audi Q7, VW Touareg Front Subframe Bushings

Powerflex

Porsche Cayenne, Audi Q7, VW Touareg Front Subframe Bushings

Regular price $445.99
Unit price  per
Shipping calculated at checkout.

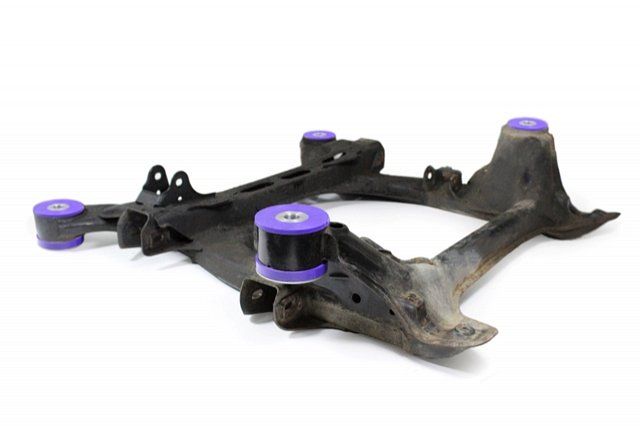

Worn OE front subframe bushings can often be the cause of knocking and front end instability.  PFF85-1605 Front Subframe Mounting Bushings come in two halves with a separate aluminum center sleeve to save labor time, providing an easy to install, fit-and-forget, lifetime warrantied solution.

If your vehicle is clunky over bumps or hard to keep in a straight line, the chances are you need Powerflex subframe bushings.

Install Instructions:

1. Remove the original bushings from the subframe.

2. Clean any dirt and corrosion from the bore of the

subframe and file off any sharp edges.

3. Push the polyurethane A part, with the thinner lip,

into the bore of the subframe from the top, as shown in

figure 1.

4. Push the polyurethane B part, with the thicker lip,

into the bore of the subframe from the bottom as

shown in figure 1.

5. Apply some of the supplied grease to the bore of the

polyurethane parts, and insert the stainless steel sleeve

into the bore from the top until it sits flush with the top

surface of the bushing.

6. Fit a zinc plated washer over the steel cup, so that the

washer is sitting on the lip of the cup. Push the cup and

washer into the bushing from the bottom, as shown at right.

7. Refit to the chassis using the original bolt and

tension all hardware to manufacturers recommended

 torque settings.

Powerflex PN: PFF85-1605
Diagram Reference #5
Item is not stocked. 2 week ETA
Fitment:

Audi Q7 (2005-2015)

Porsche Cayenne (2002-2017)

VW Touareg (02-18)
